Liverani




ACCESORIES


KIT FOR TANK WASHING

Complete kit:
Centrifugal stainless steel AISI 316 electric pump with mechanical seal Ceramics-Grafite-Viton, non self-priming, stainless steel trolley, rotative running switch, stainless steel counterflanges with Garolla reductions, stainless steel AISI 304 jet washing Garolla 50.

 a
Type Max tank
hight		 AC electric
motor		 kW Rpm Inlet fitting
connection		 Outlet fitting
connection		 Capacity Code
(21 m) (39 m)
Kit washing H5 5 m 400V/50Hz 3,0 2800 2"x50 1"1/4x50 25 m³/h 9 m³/h 36396005
Kit washing H10 10 m 400V/50Hz 5,5 2800 2"1/2x60 1"1/2x50 48 m³/h 18 m³/h 36396010
Kit washing H12 12 m 400V/50Hz 7,5 2800 2"1/2x60 1"1/2x50 50 m³/h 18 m³/h 36396012
aWashing stainless steel AISI 304 jet only (Garolla 50) 850000171

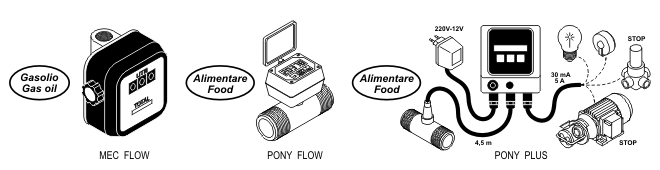

LITER COUNTER
a
Mechanical
liter counter		 Inlet/Outlet Body
material		 Accuracy Press.
Max		 Capacity
(l/min)		 Code
MEC FLOW 3/4" BSP-F 3/4" Aluminium ± 1% 3 bar 20:80 8210515030
MEC FLOW 1" BSP-F 1" Aluminium ± 1% 3 bar 20:80 8210515040
Digital
liter counter		 Inlet/Outlet Body
material		 Accuracy Press.
Max		 Capacity
(l/min)		 Code
PONY FLOW 1/2" BSP-M 1" S.S. AISI 304 ± 1% 40 bar 3:30 850000150
PONY FLOW 3/4" BSP-M 1" S.S. AISI 304 ± 1% 40 bar 7:70 850000151
PONY FLOW 1" BSP-M 1" 1/4 S.S. AISI 304 ± 1% 40 bar 10:100 850000152
PONY FLOW 1" 1/2 BSP-M 1" 1/2 S.S. AISI 304 ± 1% 40 bar 30:350 850000146
PONY FLOW 2" BSP-M 2" S.S. AISI 304 ± 1% 40 bar 72:750 850000153
PONY FLOW 3" BSP-M 3" S.S. AISI 304 ± 1% 40 bar 150:1500 850000154
PONY FLOW 4" BSP-M 4" S.S. AISI 304 ± 1% 40 bar 300:3000 850000155
Digital liter counter
with control and
stopping signal		 Inlet/Outlet Body
material		 Output
signal		 Press.
Max		 Capacity
(l/min)		 Code
PONY PLUS 1/2" BSP-M 1" S.S. AISI 304 30 mA 40 bar 3:30 850000158
PONY PLUS 1/2" BSP-M 1" S.S. AISI 304 5 A 40 bar 3:30 850000158A5
PONY PLUS 3/4" BSP-M 1" S.S. AISI 304 30 mA 40 bar 7:70 850000159
PONY PLUS 3/4" BSP-M 1" S.S. AISI 304 5 A 40 bar 7:70 850000159A5
PONY PLUS 1" BSP-M 1" 1/4 S.S. AISI 304 30 mA 40 bar 10:100 850000160
PONY PLUS 1" BSP-M 1" 1/4 S.S. AISI 304 5 A 40 bar 10:100 850000160A5
PONY PLUS 1" 1/2 BSP-M 1" 1/2 S.S. AISI 304 30 mA 40 bar 35:350 850000161
PONY PLUS 1" 1/2 BSP-M 1" 1/2 S.S. AISI 304 5A 40 bar 35:350 850000161A5
PONY PLUS 2" BSP-M 2" S.S. AISI 304 30 mA 40 bar 72:750 850000162
PONY PLUS 2" BSP-M 2" S.S. AISI 304 5 A 40 bar 72:750 850000162A5
PONY PLUS 3" BSP-M 3" S.S. AISI 304 30 mA 40 bar 150:1500 850000163
PONY PLUS 3" BSP-M 3" S.S. AISI 304 5 A 40 bar 150:1500 850000163A5
PONY PLUS 4" BSP-M 4" S.S. AISI 304 30 mA 40 bar 300:3000 850000164
PONY PLUS 4" BSP-M 4" S.S. AISI 304 5 A 40 bar 300:3000 850000164A5

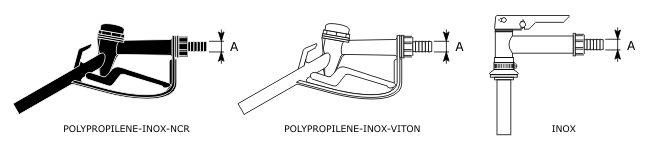

DECANTING GUN
a
Type Use Fitting connection [A] Code
Polypropilene-Inox-Ncr Various liquid and fuel Ø 20 mm 8210506530
Ø 25 mm 8210506531
Polypropilene-Inox-Viton Foods and Corrosive Ø 20 mm 8210506540
Ø 25 mm 8210506541
Inox Foods Ø 20 mm 85000021620
Ø 25 mm 85000021625
Ø 30 mm 85000021630

FOOT STRAINERS a
Fitting connection [A] Dimensions [D] Material Code
Ø 20 mm Ø 100 mm Plastic 8210302120
Ø 25 mm Ø 100 mm Plastic 8210302125
Ø 30 mm Ø 125 mm Plastic 8210302230
Ø 40 mm Ø 150 mm Plastic 8210302340
Ø 50 mm Ø 150 mm Plastic 8210302350

KIT FOR BARREL FILLING a
Complete kit:
Stainless steel automatic gun
No return valve
Pressure switch
Fitting Ø 30 mm
Type Code
Complete kit 36395701
Stainless steel automatic gun only 850000204
S.steel no return valve with pressure switch only 34751701

RADIOCONTROL a
Universal system for remote control
of electrical motors
Type Code
STARTER 16A T2 850000071
STARTER 32A T2 850000071A32
